Projekt:Ponte Cavagliasch, 7742 Poschiavo Ingenieur: Conzett Bronzini Partner AG, Chur Bauunternehmung: Vecellio Construzioni AG, Poschiavo Bauzeit: Juli 2020 bis August 2020

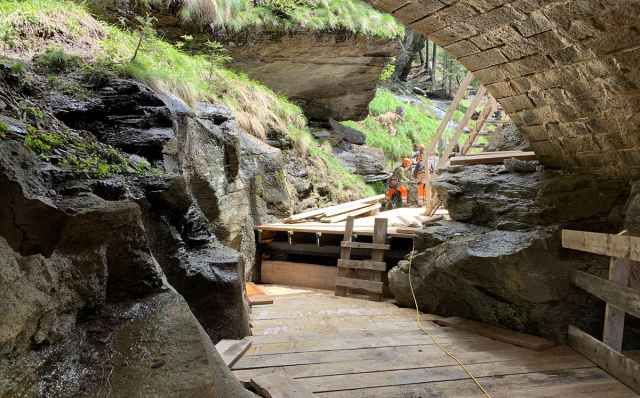

Ziel dieses Projektes ist es, eine neue naturgetreue Fussgängerbrücke über die Cavagliaschlucht zu erstellen. Topografisch soll die neue Fussgängerbrücke die bestehende Bogenbrücke der RhB unterqueren. Mit der Umsetzung dieses Projektes soll ein weiterer Teil der Schlucht für die Öffentlichkeit zugänglich gemacht werden.
Technische Informationen
Die Brücke aus Betonelementen in Naturstein-Optik wurde mit 13 BBRV Stäben Ø 12 mm verstärkt. Jeder Stab wurde mit 2 entsprechenden Verankerungen befestigt, auf 124 kN abgespannt und nachträglich zwecks Korrosionsschutz mit gefetteten Schutzhauben abgedeckt. Dabei umfasste die horizontale Brückenplatte 5 Spannglieder und die beidseitigen Treppenstege je 4 Spanglieder.
Verwendetes Material
13 Stück BBRV-Stab Ø 12 mm), gefettet, in PE-Hüllrohren 26 Stück Verankerungen aus Ankerplatte, Mutter und Schutzhaube
